Blasting Media: Complete Detailed Guide
1. What is Blasting Media?
Blasting media (also called abrasive blasting media, blast media, or grit) is any granular material propelled at high velocity against a surface. Its primary purposes are:
Removing rust, mill scale, old paint, coatings, or contaminants
Creating a surface profile (anchor pattern) for better coating adhesion
Deburring, peening, polishing, or achieving a specific finish
The process is commonly known as abrasive blasting, media blasting, grit blasting, or (traditionally) sandblasting. Pure silica sand is now largely avoided due to serious health risks (silicosis).
2. How Abrasive Blasting Works
Abrasive particles are accelerated using compressed air, a centrifugal wheel, or a water slurry and directed onto the workpiece through a nozzle.
Main components of a typical system:
Blast pot / hopper (stores the media)
Propulsion system (compressed air or mechanical wheel)
Hose and nozzle
Recovery/reclamation system (in blast rooms or cabinets)
Typical operating pressures range from 40–150 psi, depending on the media and application.
3. Key Properties of Blasting Media
The performance of any media depends on these critical characteristics:
Property
Influence on Performance
Hardness (Mohs scale)
Higher hardness = more aggressive cutting and deeper profile
Particle Shape
Angular → deep etch/profile; Spherical → peening and smooth finish
Particle Size (Grit/Mesh)
Coarser particles create deeper profiles; finer particles give smoother finishes
Density
Higher density transfers more kinetic energy
Friability
Affects dust generation and how quickly the media breaks down
Recyclability
Determines long-term cost-effectiveness
Dust Level & Silica Content
Impacts safety, environment, and regulatory compliance

Selection principles:
Choose the least aggressive media that achieves the required result
Use the smallest particle size that delivers the desired profile
Operate at the lowest effective pressure
4. Major Types of Blasting Media
A. Mineral & Ceramic Abrasives
Aluminum Oxide (Brown or White Fused)
Hardness: ~9 Mohs
Shape: Angular
Highly aggressive and recyclable (50–200 cycles)
Ideal for heavy rust/paint removal, steel preparation, and etching
Silica-free and versatile
Silicon Carbide
Hardness: 9–9.5 Mohs (one of the hardest common media)
Extremely aggressive
Best for ceramics, glass etching, and very hard surfaces
Higher cost and moderate recyclability
Garnet
Hardness: 7.5–8 Mohs
Shape: Sub-angular
Low dust generation and environmentally friendly
Excellent for open-air blasting, pipelines, and precision work
Good recyclability (typically 3–6 cycles)
Crushed Glass / Glass Grit
Made from recycled glass
Medium aggression, angular particles
Cost-effective and eco-friendly option for paint stripping and general cleaning
B. Metallic Abrasives

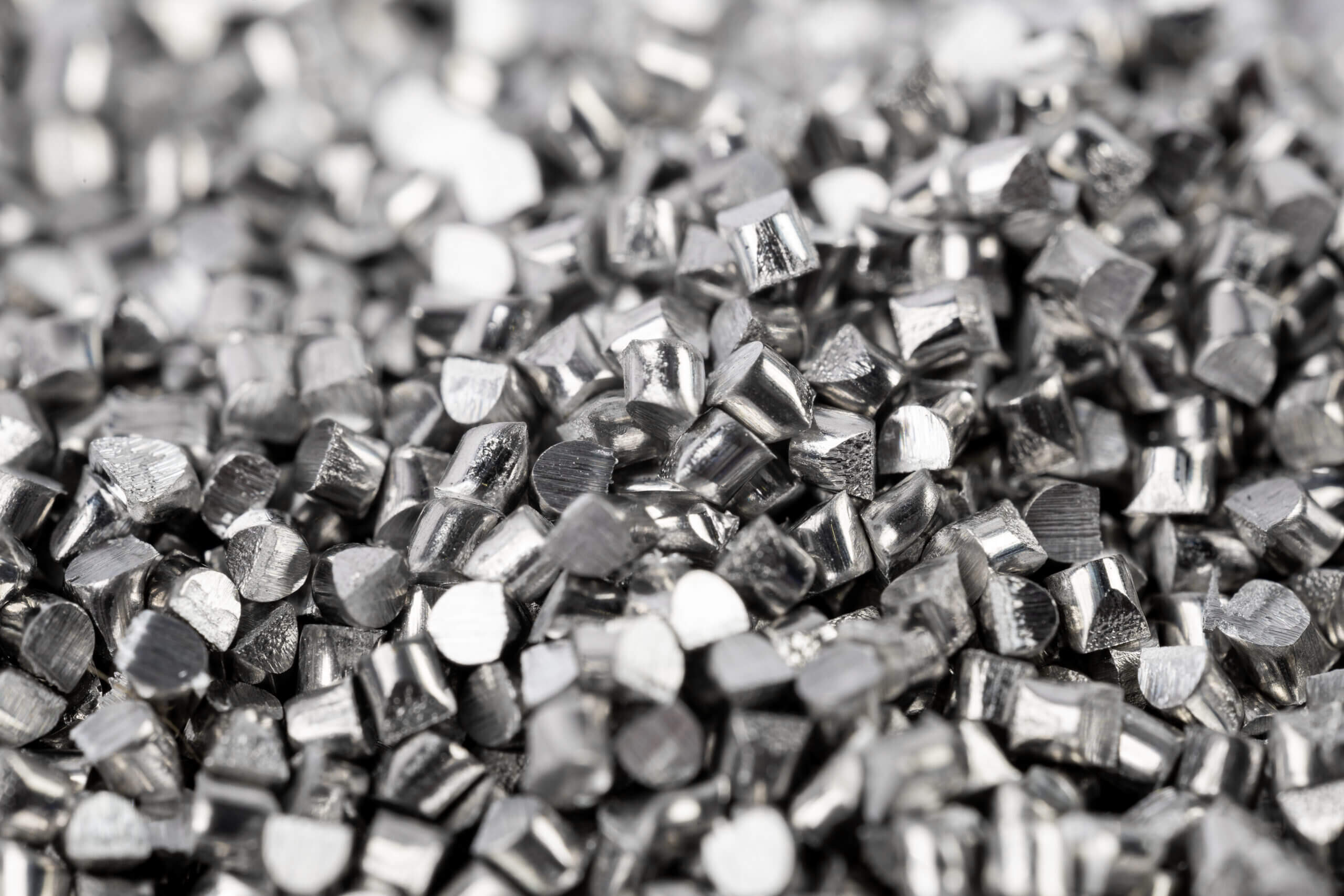

Steel Grit
Angular particles
Very high recyclability (100–500+ cycles)
Best for heavy industrial steel work and blast rooms
Produces deep, sharp profiles
Not suitable for stainless steel or non-ferrous metals (iron contamination risk)
Steel Shot
Spherical particles
Excellent for peening, polishing, and descaling
Creates a smooth, work-hardened surface rather than a deep profile
C. Synthetic & Soft Media
Glass Beads
Hardness: 5.5–6 Mohs
Spherical shape
Produces a bright satin finish
Ideal for stainless steel, aluminum, peening, and cosmetic finishing
Low aggression and good recyclability
Plastic Media
Hardness: 3–4 Mohs
Designed for delicate substrates
Widely used in aerospace and composites for paint stripping without damaging the base material
Sodium Bicarbonate (Soda)
Very soft (Mohs ~2.5)
Non-abrasive cleaning
Excellent for fire restoration, food-grade equipment, and sensitive surfaces
D. Organic / Agricultural Media
Walnut Shell & Corn Cob
Soft (Mohs 2.5–4)
Gentle cleaning of wood, molds, and delicate surfaces
Leaves no significant surface profile
Specialty Options
Dry Ice (CO₂ pellets): Non-abrasive, zero secondary waste
Coal slag / Copper slag: Heavy industrial, mostly single-use
5. Quick Performance Comparison
Most Aggressive: Silicon Carbide → Aluminum Oxide → Steel Grit
Best Long-Term Cost (High Volume): Steel Shot / Steel Grit
Best Smooth/Satin Finish: Glass Beads
Best for Delicate Surfaces: Plastic media, Walnut shell, Soda, Glass beads
Best Low-Dust / Eco Option for Open Blasting: Garnet
Avoid on Stainless Steel or Aluminum: Any steel-based media
6. How to Select the Right Blasting Media (Step-by-Step)
Identify the substrate
Carbon/structural steel → Most media are suitable
Stainless steel / Titanium → White aluminum oxide, garnet, or glass beads
Aluminum / thin sheet → Glass beads, plastic, or fine aluminum oxide
Composites / wood → Plastic or walnut shell
Determine what needs to be removed (heavy scale vs light oxidation vs coatings)
Define the required surface profile
Deep anchor profile for coatings → Angular hard media
Smooth or peened finish → Spherical media
Consider environmental and safety constraints
Silica-free media is now standard in most regions
Evaluate dust levels and recovery system availability
Calculate true cost
Focus on cost per square meter (including recyclability and consumption), not just unit price
7. Common Industrial Applications
Application
Recommended Media
Structural steel / shipyards
Garnet, Steel grit, Aluminum oxide
Automotive restoration
Glass beads, Soda, Plastic media
Aerospace components
Plastic media, Glass beads, White Al₂O₃
Stainless steel finishing
Glass beads
Concrete preparation
Crushed glass, Garnet, Steel
Mold cleaning / wood
Walnut shell
Sensitive / food-grade / heritage
Soda or Dry ice

8. Safety and Environmental Considerations
Never use traditional silica sand — it creates dangerous respirable crystalline silica dust.
Always use appropriate PPE (respirator, protective clothing, eye and hearing protection).
Ensure proper ventilation or dust collection systems.
Follow local regulations for media disposal, especially when the media is contaminated with coatings or heavy metals.
Wet blasting is an effective option to significantly reduce airborne dust.
9. Advantages of Correct Media Selection
Superior coating adhesion and longer service life
Faster processing and lower media consumption
Reduced risk of substrate damage
Lower overall operating cost
Better compliance with health, safety, and environmental standards
Blasting Media Choosing the wrong media can result in substrate damage, poor coating performance, higher costs, and increased safety risks.
